Mindray BeneVision N Series Patient Monitor (N22, N19, N17, N15, N12) – High-End Monitor for ICU and Operating Room
Mindray · Model: BeneVision N
Request a quote
The Mindray BeneVision N Series patient monitor is a high-end modular monitoring platform with multi-touch displays from 12.1 inch to 22 inch — the N22 and N19 rotate between landscape and portrait orientation. It covers full 12-lead ECG, SpO2, NIBP, IBP, EtCO2, C.O., PiCCO, BIS, EEG, NMT and INVOS rSO2, together with the Clinical Assistive Applications suite (HemoSight, SepsisSight, BoA Dashboard, EWS). A complete patient monitoring solution for ICU, CCU, NICU, operating rooms, PACU and emergency departments.
Also available in: Tiếng Việt
Mindray BeneVision N Series Patient Monitor Overview
The BeneVision N Series is Mindray's flagship patient monitor line — from a medical device group with over 30 years of experience in patient monitoring. The family comprises five main models: BeneVision N22, N19, N17, N15 and N12, together with the BeneVision N1 transport monitor, forming a continuous monitoring ecosystem from pre-hospital emergency care through to the ICU bedside.

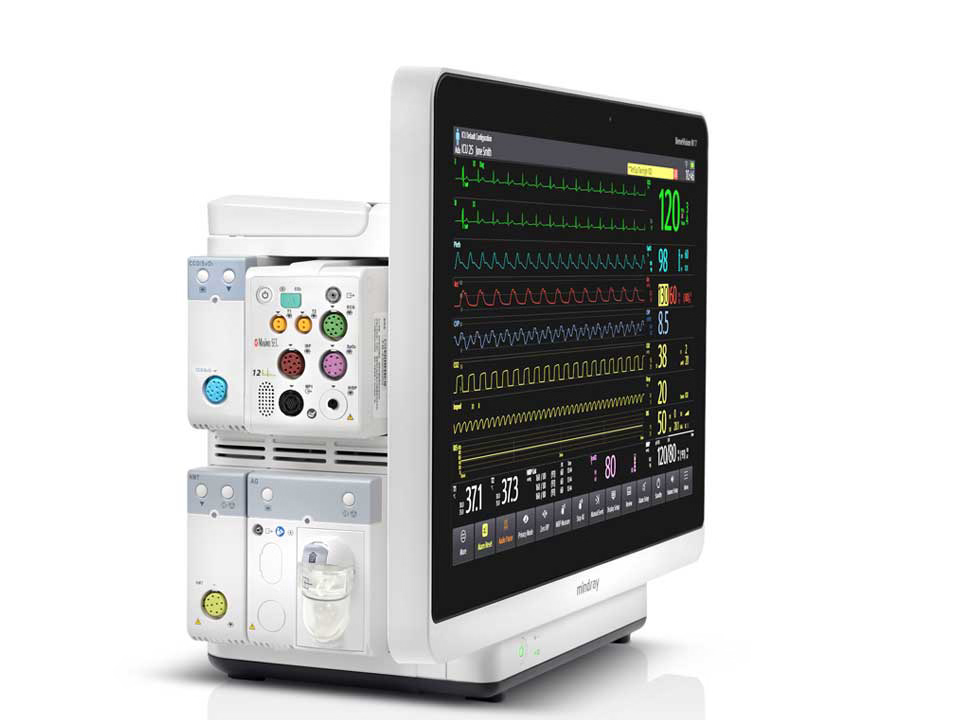

The N Series' biggest differentiator is its modular design: a compact main unit that detaches from the display, letting hospitals configure flexibly, upgrade parameters, and maximise their equipment investment. In a world first, the BeneVision N22/N19 display can ROTATE between landscape and portrait orientation, delivering a taller or wider clinical view whenever needed.
Key Specifications of the BeneVision N Series Monitor
• Display: all models use medical-grade colour TFT LCD with multi-touch capacitive screens. N22 – 22-inch (1680x1050, 178° viewing angle) and N19 – 19-inch (1680x1050, 170° viewing angle), both rotatable between landscape and portrait. N17 – 18.5-inch Full HD 1920x1080; N15 – 15.6-inch Full HD 1920x1080; N12 – 12.1-inch WXGA 1280x800 (178° viewing angle).
• Waveform channels: N22/N19 up to 16 waveforms (portrait) or 13 waveforms (landscape); N17 up to 12; N15 up to 10; N12 up to 8.
• Weight: N22 11.5 kg; N19 10.3 kg; N17 7.3 kg; N15 5.4 kg; N12 4.1 kg (standard configuration).
• ECG: automatic 3/5/6/12-lead recognition, arrhythmia analysis, ST segment analysis (∆ST, ST Graphic), real-time QT/QTc measurement (±30 ms accuracy), Glasgow resting 12-lead ECG analysis algorithm.
• SpO2: three technology options — Mindray, Masimo or Nellcor; measurement range 0–100%, accuracy ±2% (70–100%, adult/pediatric).
• Respiration: measurement range 0–200 rpm, accuracy ±1 rpm (0–120 rpm), apnea alarm 10–40 seconds.
• Advanced modular parameters: IBP, EtCO2 (sidestream/microstream/mainstream), C.O., PiCCO, ScvO2, ICG, AION Multi-Gas anesthetic gas, SPIRIT respiratory mechanics, BIS/BISx4, 4-channel EEG, NMT, INVOS rSO2, GCS.
Clinical Assistive Applications (CAAs)
The BeneVision N Series does more than display numbers — it supports clinician decision-making through Mindray's proprietary CAA suite:
• HemoSight™ – a hemodynamic support application suite that helps clinicians rapidly assess circulatory status and make treatment decisions.
• SepsisSight™ – supports screening, diagnosis and treatment of sepsis patients in line with Surviving Sepsis Campaign (SSC) guidelines.
• BoA Dashboard™ – an anesthesia dashboard that helps achieve optimal anesthetic effect throughout surgery.
• ST Graphic™ – fast, accurate detection of changes in ST segment values.
• EWS (Early Warning Score) – identifies patients at risk of physiological deterioration.
• GCS – Glasgow Coma Scale, recording the patient's level of consciousness.
Connectivity and Hospital System Integration
BeneVision N Series patient monitors are built for the paperless hospital environment, based on a 3-layer network architecture that adapts readily to existing IT infrastructure:
• Connects to the BeneVision CMS central monitoring system and eGateway to share data with HIS/CIS/EMR through a standard HL7 interface.
• The BeneLink module collects data from up to 4 bedside devices (ventilators, anesthesia machines, infusion pumps) and synchronises it into the electronic medical record.
• The iView module integrates a computer within the monitor, providing direct access to PACS, LIS, HIS/CIS and EMR right on the monitoring screen without any additional server or gateway. Its fan-free design optimises cooling and reduces cross-infection risk.
• Wirelessly connects to the TM80 and BP10 patient-worn modules, along with the BeneVision N1 transport monitor, ensuring continuous patient data from emergency care through transport to the ICU.
Clinical Applications
The BeneVision N22/N19/N17 suit the Intensive Care Unit (ICU), Coronary Care Unit (CCU), Neonatal Intensive Care Unit (NICU), cardiac operating rooms and major surgical cases requiring advanced hemodynamic monitoring. The BeneVision N15/N12 suit operating rooms, the Post-Anesthesia Care Unit (PACU), the Emergency Room (ER) and general intensive care units.
